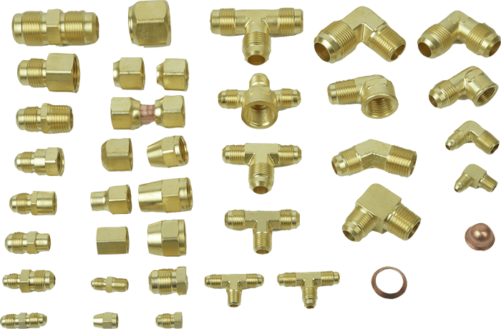

Manufactured in accordance with S.A.E. A long nut is available for applications with excessive vibration. To make a connection, place nut with threaded end toward tubing end to be flared. Flare tubing to create a 45°flare. Tube flare is clamped between nut and fitting flare when screwed together. A leak proof, metal-to-metal joint is created when assembly is tightened with a wrench. Disconnecting and reconnecting do not weaken the fitting joint.

Recommended uses

copper, brass, aluminum and welded steel hydraulic tubing that can be flared

Working temperature

–65°F to 250°F

Material

Bar Stock  CA360
Forged CA377

Working pressure

depends on temperature and the type of tubing used

Application

fuel, air, oil, water, LP and natural gas lines
