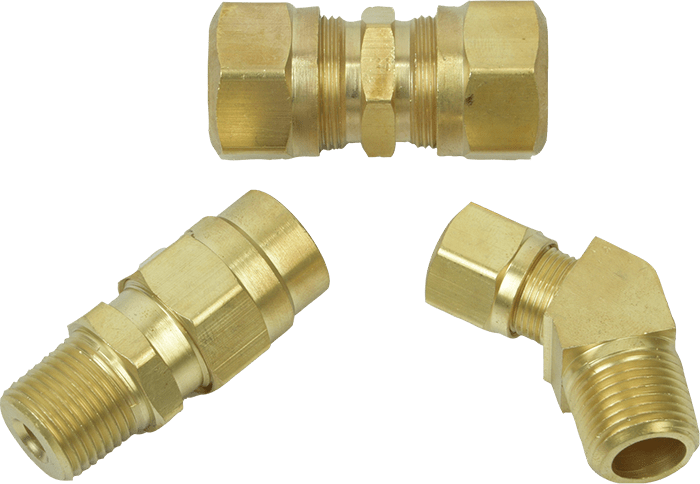

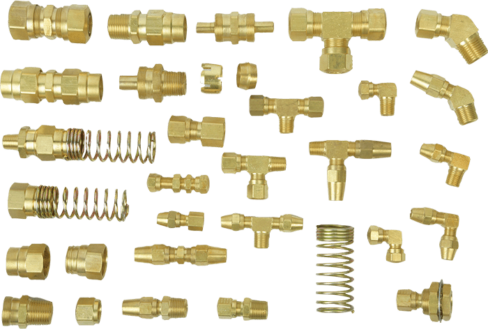

NYLON TUBE AIR BRAKE FITTINGS

Meets D.O.T air brake specifications. Use with S.A.E.J844 type A and B nylon tubing. Easy to assemble, no flaring needed. Also meets S.A.E. standards, S.A.E.J246 and S.A.E.J1131. To assemble, cut tubing squarely. Insert tubing into fitting until bottomed on seat. Then tighten nut so one thread remains visible on fitting body.

Working temperature

–40°F to 200°F

Material

Bar Stock  CA360
Forged CA377

Working pressure

up to 150 psi

Applications

air brake system and cab air controls

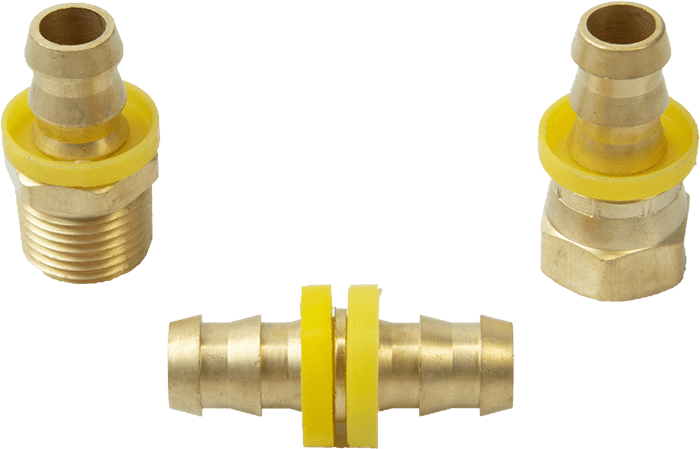

HOSE ENDS AIR BRAKE FITTINGS

Designed for use on truck and bus compressed air brake systems. Meets S.A.E. J1402C (formerly Type B) and D.O.T. FMVSS-106 specifications. Intended exclusively for use with 876 and 878 hose.

Working temperature

–63°F to 250°F

Material

BRASS CA360

Working pressure

125 psi Maximum burst pressure:900 psi

Applications

truck and bus compressed air brake systems

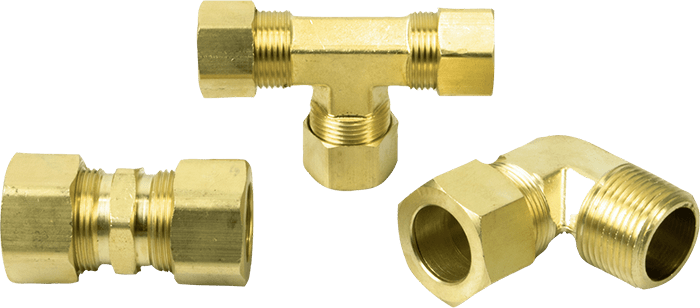

COPPER TUBE AIR BRAKE FITTINGS

Meets requirments of S.A.E. AND DOT as indicated by configuration.

Working temperature

–63°F to 250°F

Material

BRASS CA360

Working pressure

125 psi Maximum burst pressure:900 psi

Applications

Air brake systems on heavy trucks and trailers that are plumbed with copper tubing
